MAX485 RS-485/RS-422 Transceiver IC DIP-8 Package
MAX485ESA RS422 RS485 Interface IC
MAX485 is a low power transceivers for RS485 and RS422 communication. MAX485 contains one driver and one receiver. The driver slew rates of the MAX485 are not limited, allowing it to transmit up to 2.5Mbps.
These transceivers draw between 120?A and 500?A of supply current when unloaded or fully loaded with disabled drivers.?MAX485ESA RS422 RS485 IC?operates from a single 5V supply. Drivers are short circuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.
MAX488 RS-485/RS-422 Line Driver/Receiver IC DIP-8 Package
MAX488 Transceiver
The MAX481, MAX483, MAX485, MAX487?MAX491, and MAX1487 are low-power transceivers for RS-485 and RS-422 communication. Each part contains one driver and one receiver. The MAX483, MAX487, MAX488, and MAX489 feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps.
The driver slew rates of the MAX481, MAX485, MAX490, MAX491, and MAX1487 are not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120?A and 500?A of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX481, MAX483, and MAX487 have a low-current shutdown mode in which they consume only 0.1?A. All parts operate from a single 5V supply. Drivers are short-circuit current limited and are protected against ?excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high-impedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit.

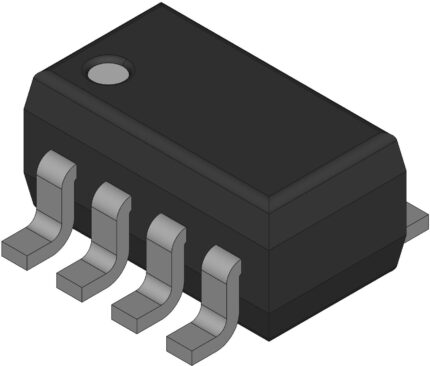

MAX6373KA+T
Features of MAX6373KA+T
- For Critical P applications, Precision Watchdog Timer
- Watchdog Timeout Periods that Can Be Pin-Selected
- Watchdog Startup Delay Periods That Can Be Pin-Selected
- Capacity to Modify Watchdog Timing Features Without Power Cycling
- Push-Pull Pulsed Active-Low Watchdog Output with Open-Drain or
- Feature to Disable the Watchdog Timer
- Operating Voltage: +2.5V to +5.5V
- Low Supply Current of 8 A
- There are no external components needed.
- Small (8-Pin SOT23 Package)
- (MAX6369KA/V+ and MAX6374KA/V+ Only) AEC-Q100 Qualified
- Embedded Control Systems
- Industrial Controllers
- Critical ?P and Microcontroller (?C) Monitoring
- Automotive
- Telecommunications
- Networking
MAX7219 8-Digit LED Display Driver IC DIP-24 Package
MC1408 8-Bit Multiplying Digital to Analog D/A Converter (DAC) IC DIP-16 Package
MC1496 Balanced Modulator/Demodulator IC DIP-14 Package
MC3302 Quad Voltage Comparator IC DIP-14
MC33078 Dual High Speed Low Noise Op-Amp IC
The MC33078 is a bipolar dual operational amplifier with high-performance specifications for use in quality audio and data-signal applications. This device operates over a wide range of single- and dual-supply voltages and offers low noise, high-gain bandwidth, and high slew rate. Additional features include low total harmonic distortion, excellent phase and gain margins, large output voltage swing with no dead band crossover distortion, and symmetrical sink/source performance.
MC33151 High Speed Dual MOSFET Driver IC DIP-8 Package
