TPIC6595DW
TPIC6595DWG4
TPIC6595DWR
TPIC6595DWRG4
TPIC6595N
TPS2041BDBVR
Features of TPS2041BDBVR
- High-Side MOSFET of 70 m
- Continuous Current of 500 mA
- Protection against Thermal and Short Circuits
- Valid Current Limit (0.75 A Minimum, 1.25 A Maximum)
- Range of Operation: 2.7 to 5.5 V
- Typical Rise Time of 0.6 ms
- Overcurrent Lockout
- Report of a Deglitched Fault (OC)
- Power Up Has No OC Glitch
- 1-A (single, dual) or 2-A is the maximum standby supply current (Triple, Quad)
- -40?C to 85?C in the ambient temperature
- UL Approved, File No. E169910
- Additional UL Recognition for the Ganged Configuration TPS2042B and TPS2052B

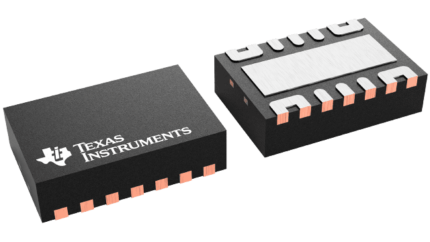

TPS22976DPUT
Features of TPS22976DPUT
? Dual-channel integrated load switch
? 0.6 to VBIAS for the input voltage range
? Voltage range for VBIAS: 2.5 to 5.7 V
? Maximum channel continuous switch current of 6 A
? Use of 1.2-, 1.8-, 2.5-, and 3.3-V logic is possible when the control input threshold is met.
? Easily adjustable rising time
? Short time to turn on
? Thermal braking
? QOD, or quick output discharge (optional)
? Thermal pad on SON 14-pin box
? ESD performance assessed according to JESD 22
Applications of TPS22976DPUT
? Ultrabook?
? Notebooks and Netbooks
? Tablet PCs
? Set-top Boxes and Residential Gateways
? Telecom Systems
? Solid-State Drives (SSD)

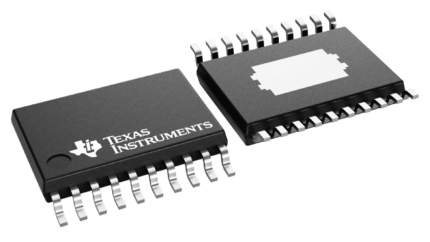

TPS23754PWPR
Features of TPS23754PWPR
- Up to 30-W (Input) PD power.
- DC-DC Control for Isolated Converters is Optimized
- Supports Highly Effective Topologies
- Integrated PoE Complete
- Enhanced Classification with Status Flag per IEEE 802.3at
- Support for Adapter ORing
- Synchronized Programmable Frequency
- Stable, 0.5-V, 100-V Hotswap MOSFET
- Junction Temperature Range: -40?C to 125?C
- HTSSOP-20 Industry Standard PowerPAD
- Equipment compliant with IEEE 802.3at
- VoIP and video phones
- Read RFID tags
- Access points with multiple bands
- Surveillance cameras

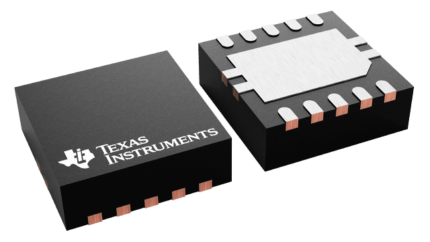

TPS2500DRC
Features of? TPS2500DRC
- Integrated Synchronous Boost Converter and USB Current-Limit Power Switch.
- Light-Load, High-Efficiency Eco-mode Control Scheme (TPS2500) or Constant Frequency (TPS2501)
- 1.8-V to 5.25-V Input Voltage (2.2-V Minimum Start-Up Voltage)
- Adjustable USB Current Limit ? 130 mA to 1400 mA (Typical)
- Accurate 20% Current Limit at 1.4-A Setting
- Powers up to Two Standard USB Ports
- Auxiliary 5.1-V Output
- Small 3-mm ? 3-mm ? 0.9-mm SON-10 Package
- Applications for Mobile Use of a Single Li+ Cell
- Without Native 5-V Supplies, USB Hosts
TPS3805H33DCKR
Features of TPS3805H33DCKR
- Adjustable/1.5 V Single Voltage Detector (TPS3803)
- Adjustable/3.3 V Dual Voltage Detector (TPS3805)
- High Threshold Voltage Accuracy of 1.5%
- 3 A Supply Current typical at 3.3 V for VDD
- Output Reset via Push/Pull (TPS3805) Output with Open-Drain Reset (TPS3803)
- Range of temperatures: -40 ?C to +85 ?C
- Package 5-Pin SC-70
- DSP, microcontroller, and microprocessor applications
- Systems for Wireless Communication
- Battery-Powered/Portable Equipment
- Adjustable controls
- Instruments with intelligence
- Industrial Supplies
- Desktop/Notebook Computers
- System Automotive
TPS54332DDA
Features of TPS54332DDA
- An input voltage range of 3.5 to 28 volts
- Output voltage is variable down to 0.8 V
- An integrated 80-m high-side MOSFET can handle an output current of up to 3.5 A continuously.
- High efficiency with pulse-skipping Eco-ModeTM at light loads
- Fixed switching frequency of 1 MHz
- A typical shutdown quiescent current of 1 A
- Variable slow-start restricts inrush currents
- Adjustable threshold for UVLO
- Protection from overvoltage transients
- Protection against thermal shutdown, frequency foldback, and cycle-by-cycle current limits
- Available in an 8-Pin SOIC Power PADTM package with thermal enhancement
- Supported by the tool WEBENCHTM
- Usage by consumers, including set-top boxes, CPE devices, LCD displays, peripherals, and battery chargers
- Automotive and commercial power supply
- Distributed power systems with voltages of 5V, 12V, and 24V
TPS61230DRC
Applications of TPS61230DRC
- Low Voltage Products Powered by Li-Ion Batteries
- USB Power Adapter
- Apple iPads
- Battery backup units and Power Banks
- Equipment for Industrial Metering
- Range of Input Voltage: 2.3 V to 5.5 V
- Range of the output voltage: 2.5 to 5.5 V
- 96% or more Efficiency Convertor Synchronous Boost
- Power Conversion from 3.3 to 5 Volts with 2.1 A Output Current
- With Adjustable Threshold/Hysteresis, Input Supply Voltage Supervisor
- Efficiency in Power Saving Mode for Light Loads
- Disconnecting the load during shutdown
- Protection from output over voltage
- Flexible Soft Start
- Good Power Output
- Switching Frequency of 2 MHz
- Capacitor Discharge at Output
