PIC18F2620 Microcontroller
The PIC18F2620?is a 28/40/44-Pin Enhanced Flash Microcontrollers with 10-Bit A/D and nanoWatt Technology. The following are the features:-
??Master Synchronous Serial Port supports SPI ? and I2C? Master and Slave Mode
??EUSART module including LIN bus support
??Four Timer Modules
??Up to 2 PWM outputs
??Up to 2 Capture / Compare
PIC18F448 Microcontroller
The PIC18F448 is a 28/40-Pin High-Performance, Enhanced Flash Microcontrollers with CAN. The following are the features:-
? High current sink/source 25 mA/25 mA
? Three external interrupt pins
? Timer0 module: 8-bit/16-bit timer/counter with 8-bit programmable prescaler
? Timer1 module: 16-bit timer/counter
? Timer2 module: 8-bit timer/counter with 8-bit period register (time base for PWM)
? Timer3 module: 16-bit timer/counter
? Secondary oscillator clock option ? Timer1/Timer3
PIC18F452 Microcontroller
The PIC18F452 is a 28/40-pin High Performance, Enhanced FLASH Microcontrollers with 10-Bit A/D. The following are the features:-
? High current sink/source 25 mA/25 mA
? Three external interrupt pins
? Timer0 module: 8-bit/16-bit timer/counter with 8-bit programmable prescaler
? Timer1 module: 16-bit timer/counter
? Timer2 module: 8-bit timer/counter with 8-bit period register (time base for PWM)
? Timer3 module: 16-bit timer/counter
? Secondary oscillator clock option ? Timer1/Timer3
PIC18F452-I/P
PIC18F452-I/P is a 28/40-pin High Performance, Enhanced FLASH Microcontrollers with 10-Bit A/D. The following are the features:-
- High current sink/source 25 mA/25 mA
- Three external interrupt pins
- Timer0 module: 8-bit/16-bit timer/counter with 8-bit programmable prescaler
- Timer1 module: 16-bit timer/counter
- Timer2 module: 8-bit timer/counter with 8-bit period register (time base for PWM)
- ?Timer3 module: 16-bit timer/counter
- Secondary oscillator clock option ? Timer1/Timer3
PIC18F4520 Microcontroller
The PIC18F4520?is a 28/40/44-Pin, High-Performance, Enhanced Flash, USB Microcontrollers with nanoWatt Technology. The following are the features:-
? High-Current Sink/Source: 25 mA/25 mA
? Three External Interrupts
? Four Timer modules (Timer0 to Timer3)
? Up to 2 Capture/Compare/PWM (CCP) modules:
- Capture is 16-bit, max. resolution 5.2 ns (TCY/16)
- Compare is 16-bit, max. resolution 83.3 ns (TCY)
- PWM output: PWM resolution is 1 to 10-bit
? Enhanced Capture/Compare/PWM (ECCP) module:
- Multiple output modes
- Selectable polarity
- Programmable dead time
- Auto-shutdown and auto-restart

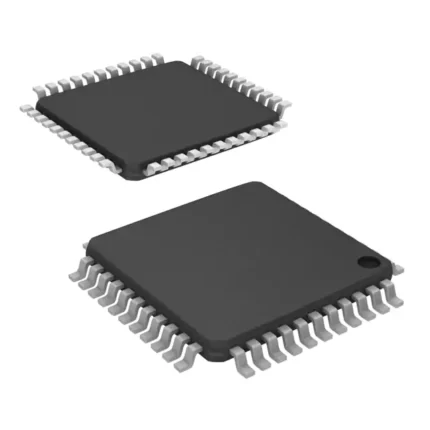

PIC18F4520-I/PT – PIC Microcontroller
PIC18F PIC Microcontrollers - PIC18F4520-I/PT | PIC18F PIC Microcontrollers are 8-bit Microcontrollers available from 18 pins onwards up to 100 PINS. They are available in various packages such as DIP, SOIC, SSOP, TQFP, QFN/ UQFN Package, etc.
PIC18F4520-I/PT Microchip Technology / Atmel 8-bit Microcontrollers - MCU 32KB
Offering the largest pin count and memory size, PIC18 microcontrollers combine the maximum level of performance and integration with the ease of use of an 8-bit architecture. With up to 16 MIPS of processing power, PIC18 microcontrollers feature advanced peripherals such as CAN, USB, Ethernet, touch sensing, and LCD display drivers. The PIC18 family has a flexible range of self-programming Flash memory from 4 KB to 128 KB and up to 8 KB RAM. Many PIC18 products conserve power with XLP technology and specialized clocking and sleep modes for battery applications. DOWNLOAD PIC18F4520 DATASHEET:
PIC18F4550 Microcontroller
The PIC18F4550?is a 28/40/44-Pin, High-Performance, Enhanced Flash, USB Microcontrollers with nanoWatt Technology. The following are the features:-
? High-Current Sink/Source: 25 mA/25 mA
? Three External Interrupts
? Four Timer modules (Timer0 to Timer3)
? Up to 2 Capture/Compare/PWM (CCP) modules:
- Capture is 16-bit, max. resolution 5.2 ns (TCY/16)
- Compare is 16-bit, max. resolution 83.3 ns (TCY)
- PWM output: PWM resolution is 1 to 10-bit
? Enhanced Capture/Compare/PWM (ECCP) module:
- Multiple output modes
- Selectable polarity
- Programmable dead time
- Auto-shutdown and auto-restart
? Enhanced USART module: LIN bus support
? Master Synchronous Serial Port (MSSP) module Supporting 3-Wire SPI (all 4 modes) and I2C? Master and Slave modes
? 10-Bit, Up to 13-Channel Analog-to-Digital Converter (A/D) module with Programmable Acquisition Time
? Dual Analog Comparators with Input Multiplexing
PIC18F4620 I/P – Microchip
PIC18F4620 I/P is an enhanced Flash Microcontroller with 10-bit A/D and nanoWatt technology. This offers ten different oscillator options, allowing users a wide range of choices in developing application hardware. This device offers a total of seven operating modes for more efficient power management. These modes provide a variety of options for selective power conservation in applications where resources may be limited. As a Harvard architecture device, the data and program memories use separate busses, this allows for concurrent access to the two memory spaces. The data EEPROM, for practical purposes, can be regarded as a peripheral device, since it is addressed and accessed through a set of control registers.
