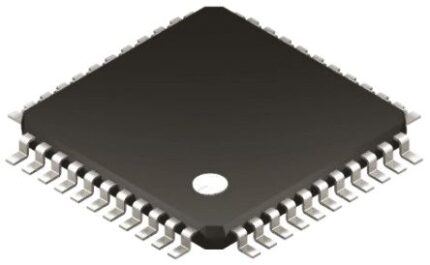

PIC18F4620-I/PT
Description / Summary? and Features of the Product? arev as below:
Ten distinct oscillator variants are available across the PIC18F2525/2620/4525/4620 family of devices, giving customers a wide range of possibilities when designing application hardware. Four crystal modes employing crystal or ceramic resonators are among them.
? Two external clock modes that allow for the use of either one pin (oscillator input with the additional pin designated as general I/O) or two pins (oscillator input plus a divide-by-4 clock output).
? Two additional RC oscillator modes that share the same pin configurations as external clock modes.
? An internal oscillator block that offers a total of 8 clock frequencies, 6 user-selectable clock frequencies between 125 kHz and 4 MHz, an INTRC source (about 31 kHz), and an 8 MHz clock. The two oscillator pins can now be used as extra general purpose I/O thanks to this option.
? A Phase Lock Loop (PLL) frequency multiplier that may be used with the Internal Oscillator and High-Speed Crystal modes to increase clock speeds up to 40 MHz. Without the need for an additional crystal or clock circuit, the PLL provides users with a full range of clock rates, from 31 kHz to 32 MHz, to be used with the internal oscillator.
PIC18F46K22-I/PT
PIC18F46K22-I/PT 8bit PIC Microcontroller 64MHz 64kb Flash 44-Pin TQFP
Manufacturer: Microchip Technology Manufacturer Product Number: PIC18F46K22-I/P Description: IC MCU 8BIT 64KB FLASH 40DIP Detailed Description: PIC PIC? XLP? 18K Microcontroller IC 8-Bit 64MHz 64KB (32K x 16) FLASH 40-PDIP pic18f46k22-i/pt datasheet
SST89E516RD-40-C-PIE
SST89E516RD2-40-C-PIE- Microchip - 40 Pin PDIP - 8051 Core Microcontroller - Replaces NXP P89V51RD2
The SST SST89x516RD2 is an 8051-based microcontroller with Embedded Flash Memory, 3 16-bit Timers, UART, WDT, PCA, 32 I/O pins, Dual Data Pointers, SPI etc. It's a 100% Pin drop replacement to NXP's P89V51RD2 microcontroller, It has an inbuilt bootloader and does not require any external programmer to update flash. The SST89E516RDx and SST89V516RDx are members of the FlashFlex family of 8-bit microcontroller products designed and manufactured with SST?s patented and proprietary SuperFlash CMOS semiconductor process technology.
STM32F030R8T6
The STM32F030x4/x6/x8/xC microcontrollers have a high-performance Arm?Cortex?-M0 32-bit RISC core running at 48 MHz, high-speed embedded storage (up to 256Kbytes of Flash memory and 32Kbytes of SRAM), and a wide range of upgraded peripherals and I/Os. Standard communication interfaces (up to two I2Cs, two SPIs, and up to six USARTs) are available on all devices, as well as one 12-bit ADC, seven general-purpose 16-bit timers, and one advanced-control PWM timer. From a 2.4 to 3.6V power supply, the STM32F030x4/x6/x8/xC microcontrollers work in the temperature range of -40 to 85 ?C. Low-power applications can be designed thanks to a wide collection of power-saving options. The STM32F030x4/x6/x8/xC microcontrollers are available in four different package sizes ranging from 20 to 64 pins. Different sets of peripherals are included depending on the device. The following description provides an overview of the entire scope of STM32F030x4/x6/x8/xC peripherals proposed. These characteristics make the STM32F030x4/x6/x8/xC microcontrollers suitable for a variety of applications, including application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS portals, industrial uses, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.
