74HC02 Quad 2-Input NOR Gate IC (7402 IC) DIP-14 Package

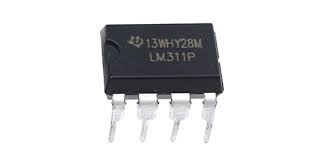

IC LM311N
LM111 series of voltage comparators have input currents that are about a 100 times lower than the A710. They're made to work with a larger range of supply voltages, ranging from normal 15 V op amp supplies to a single 3 V supply. RTL, DTL, and TTL circuits, as well as MOS circuits, can use their output. They can also power bulbs or relays with changing voltages up to 50 V and currents up to 50 mA. The LM111 series' inputs and outputs can both be separated from system ground, and the output can drive loads connected to ground, positive supply, or negative supply. There is offset equalization and strobe functionality, and wire-O Red outputs are available.
- Manufacturer: Texas Instruments
- Manufacturer Part Number:LM311N/NOPB
- Description: IC VOLTAGE COMPARATOR 8-DIP
- Detailed Description: Comparator General Purpose DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL 8-PDIP
ILX3232DT Interface Transceiver IC
- Brand: IK Semiconductor
- Mounting Type:SMD
- Part Number: ILX3232DT
- Package: SO/SOIC
IK Semiconductor SMD ILX3232DT Interface Transceiver IC
ILX3232 is a 3.3V powered EIA/TIA-232 and V.28/V.24 communication interface with low power requirements, high data-rate capabilities. ILX3232 has a proprietary low dropout transmitter output stage providing true RS-232 performance from 3.3vVto 5.5V supplies. The device requires only four small 0.1 ?F standard external capacitors for operations from 3.3V supply. ILX3232 has two receivers and two drivers. The device is guaranteed to run at data rates of 120Kbps while maintaining RS-232 output levels. Typical applications are Notebook, Subnotebook and Palmtop Computers, Battery Powered Equipment, Hand-Held Equipment, Peripherals and Printers. ILX3232D Datasheet
IR2110 High and Low Side Driver IC DIP-14 Package
IR2110 High And Low Side Driver IC ? DIP-14 Package
IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high-frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts. IR2110(S)PbF/IR2113(S)PbF.- Part Number?IR2110
- Manufacturer? Infineon Technologies
- Description:IC GATE DRVR HALF-BRIDGE 16SOIC
IR2113 High and Low Side Driver IC DIP-14 Package
IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.
- Part Number IR2113
- Manufacturer: Infineon Technologies
- Description: IC GATE DRVR HALF-BRIDGE 14DIP
- Detailed Description: Half-Bridge Gate Driver IC Non-Inverting 14-DIP
IRFP250N MOSFET – 200V 30A N-Channel Power MOSFET TO-247 Package
IRFP250N is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
- Manufacturer:INFINEON
- Manufacturer Part No:IRFP250N
- Technical Datasheet:IRFP250N Datasheet
LM348N
LM148, LM248, and LM348 are quadruple, independent, high-gain, internally compensated operational amplifiers designed to have operating characteristics similar to the ?A741. These amplifiers exhibit low supply-current drain and input bias and offset currents that are much less than those of the ?A741.
- Manufacturer:Texas Instruments
- Manufacturer Part Number: LM348N
- Description: IC OPAMP GP 4 CIRCUIT 14DIP
- Detailed Description: General Purpose Amplifier 4 Circuit 14-PDIP
MAX232 Dual Driver/Receiver IC DIP-16 Package
MAX232E is from the family of RS-232 and V.28 transceivers with high ?15kV ESD HBM protection and integrated charge pump circuitry for single 5V supply operation. The various combinations of features are outlined in the Selector Guide.
Part No: MAX232E
MAX232E Datasheet
MAX485CPA
MAX481, MAX483, MAX485, MAX487?MAX491, and MAX1487 are low-power transceivers for RS-485 and RS422 communication. Each part contains one driver and one receiver. The MAX483, MAX487, MAX488, and MAX489 feature reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, thus allowing error-free data transmission up to 250kbps.
The driver slew rates of the MAX481, MAX485, MAX490, MAX491, and MAX1487 are not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120?A and 500?A of supply current when unloaded or fully loaded with disabled drivers. Additionally, the MAX481, MAX483, and MAX487 have a low-current shutdown mode in which they consume only 0.1?A. All parts operate from a single 5V supply.
Manufacturer: Analog Devices Inc./Maxim Integrated
Manufacturer Product Number:MAX485CPA
Description: IC TRANSCEIVER HALF 1/1 8DIP
Detailed Description: 1/1 Transceiver Half RS422, RS485 8-PDIP
max485cpa datasheet
MIC29302WU
MIC29150/29300/29500/29750 are voltage regulators with high current, high precision, and minimal dropout. These regulators have typical dropout voltages of 350mV to 425mV (full load) and exceptionally low ground current thanks to Micrel's unique Super eta PNP? technology with a PNP pass element. These devices are designed for large current loads, but they can also be used in lower current, highly low dropout-critical systems, where their small dropout voltage and ground current values are significant.
Overcurrent faults, reversed input polarity, reversed lead insertion, overtemperature operation, and positive and negative transient voltage spikes are all adequately protected in the MIC29150/29300/29500/29750. The five-pin fixed voltage versions have logic level ON/OFF control as well as an error flag that signals when the output is out of regulation. Low input voltage (dropout), output current limit, overtemperature shutdown, and extremely high overvoltage on the input are all flagged states.
If the ENABLE pin on the MIC29xx1 and MIC29xx2 is not required for ON/OFF control, it can be linked to VIN. 3-pin and 5-pin TO-220 and surface mount TO-263 (D2Pak) packaging are available for the MIC29150/29300/29500. Three-pin and five-pin TO-247 packages are offered for the MIC29750 7.5A regulators. The MIC29152 has a 1.5A adjustable output and is packaged in a 5-pin power D-Pak (TO-252) box. See MIC37xxx LDOs for applications with input voltages of 6V or less.
Manufacturer:MICROCHIP
Part No:MIC29302WU
MIC29302WU Datasheet
NE556 IC – Dual Timer IC
NE556 IC devices provide two independent timing circuits of the NE555 ?type in each package. These circuits can be operated in the a stable or the monostable mode with external resistor-capacitor (RC) timing control. The basic timing provided by the RC time constant can be controlled actively by modulating the bias of the control-voltage input. The threshold (THRES) and trigger (TRIG) levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by using the control voltage (CONT) terminal. When the trigger input falls below trigger level, the flip-flop is set and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset, and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset and the output goes low. When the output is low, a low-impedance path is provided between the discharge (DISCH) terminal and ground (GND).
NE556 IC Datasheet
STM32L431CBT6
stm32l431cbt6 devices are the ultra-low-power microcontrollers based on the high performance Arm? Cortex?-M4 32-bit RISC core operating at a frequency of up to 80 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm? single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
stm32l431cbt6 devices embed high-speed memories (Flash memory up to 256 Kbyte,64 Kbyte of SRAM), a Quad SPI flash memories interface (available on all packages) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. The STM32L431xx devices embed several protection mechanisms for embedded Flash memory and SRAM: readout protection, write protection, proprietary code readout protection and Firewall.
The devices offer a fast 12-bit ADC (5 Msps), two comparators, one operational amplifier, two DAC channels, an internal voltage reference buffer, a low-power RTC, one generalpurpose 32-bit timer, one 16-bit PWM timer dedicated to motor control, four general-purpose 16-bit timers, and two 16-bit low-power timers.
Part No: STM32L431CBT6
Mfr.:STMicroelectronics
Description: ARM Microcontrollers - MCU Ultra-low-power FPU Arm Cortex-M4 MCU 80 MHz 128 Kbytes of Flash
STM32L431CBT6 Datasheet
