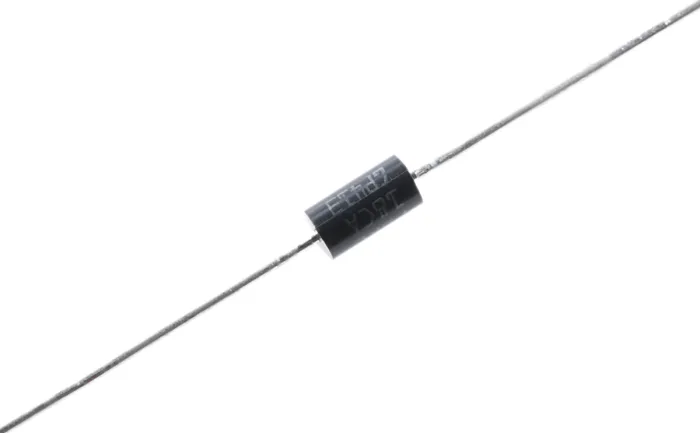

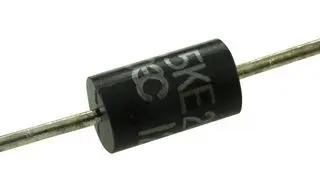

1.5KE82CA (pack of 10)

Feature:

– **Peak Pulse Capability**: 500W at 10/1000μs waveform, with a repetition rate (duty cycle) of 0.01%.
– **Package**: DO-201 package with a glass passivated chip junction.
– **Response Time**: Typically less than 1.0ps from 0 Volts to BV min (breakdown voltage minimum).
– **Clamping Capability**: Excellent, designed to limit voltage spikes effectively.
– **Failure Mode**: Typically fails short from over-specified voltage or current.
– **Whisker Test**: Conducted per JEDEC JESD201A standards (Table 4a and 4c) for mechanical reliability.
– **ESD Protection**: Meets IEC 61000-4-2 standards (30kV air discharge, 30kV contact discharge).
– **EFT Protection**: Complies with IEC 61000-4-4 standards for electrical fast transient protection.
– **Surge Resistance**: Low incremental surge resistance to minimize voltage drop.
– **Leakage Current**: Typical IR less than 1μA when VBR min (minimum breakdown voltage) is greater than 12V.
– **High Temperature Soldering**: Guaranteed for reflow soldering up to 260°C for 30 seconds with specific lead length and tension.
– **Breakdown Voltage (VBR)**: Temperature-dependent according to VBR @ TJ = VBR@25°C x (1+αT x (TJ – 25)), where αT is typically 0.1% per °C.
– **Material and Compliance**:
– Plastic package with V-0 flammability rating per Underwriters Laboratories.
– Matte tin lead-free plated terminals.
– Halogen-free and RoHS compliant.
– Pb-free E3 designation confirming lead-free second-level interconnects and tin (Sn) terminal finish as per IPC/JEDEC J-STD-609A.01.

These specifications indicate a robust TVS diode designed to protect electronic circuits from transient voltage spikes, ESD events, and other electrical disturbances, while also ensuring compliance with environmental and safety standards.
