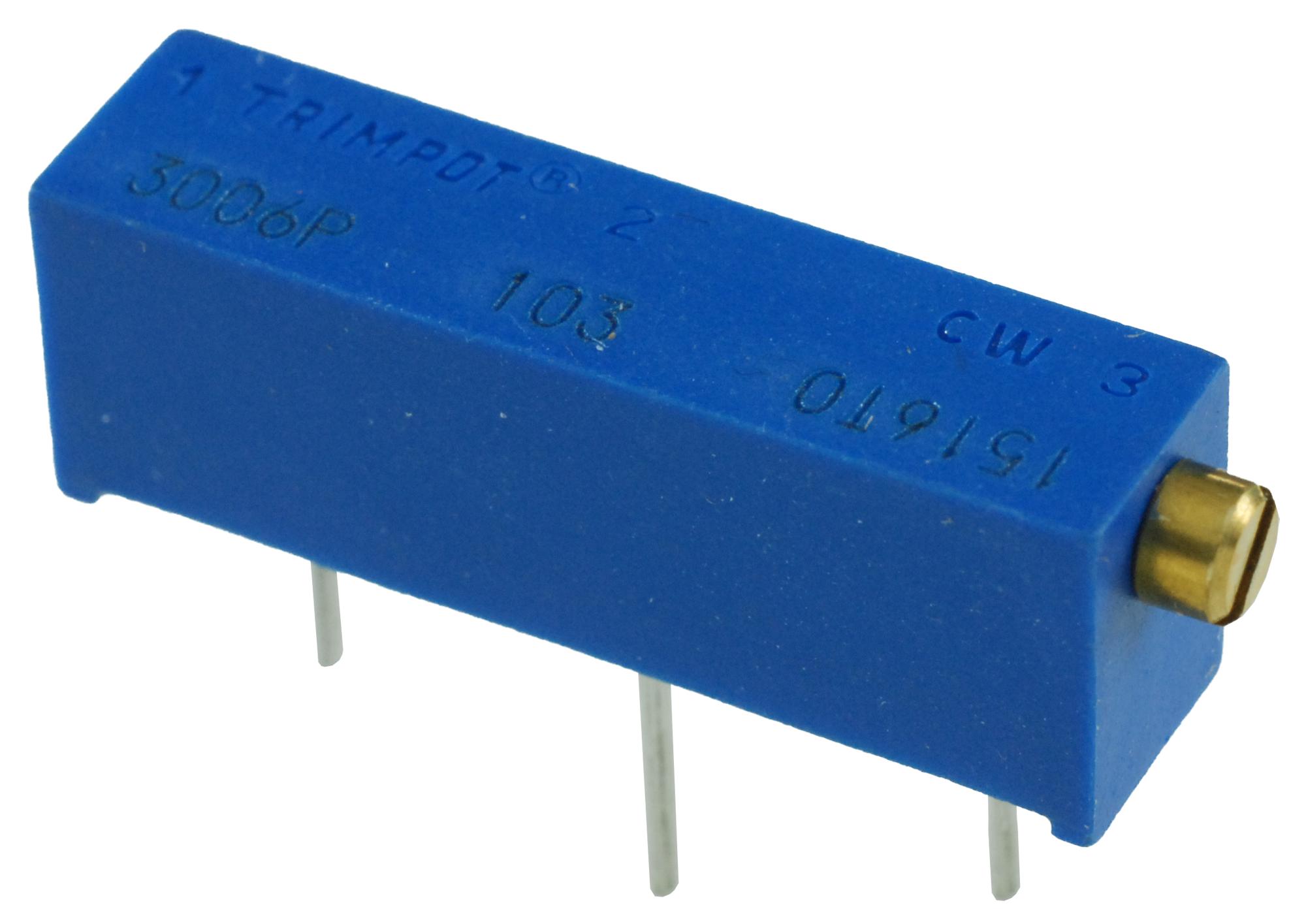

Bourns 3006P 10K 103 Ohms Trimpot Trimmer Potentiometer (Pack of 5)
₹150.00
Description of ?3006P 10K 103 Potentiometer?
10 kOhms 0.75W, 3/4W PC Pins Through Hole Trimmer Potentiometer Cermet 15.0 Turn Side Adjustment
Features of 3006P-1-103 Potentiometer?
- 5 terminal styles in multiturn or cermet or??industrial or??sealed
- Packaging in tape and reel is available.
- Chevron seal design
- Styles RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035 are listed on the QPL.
- The available mounting hardware is of H-117P
- Available in a RoHS-compliant* variant.
500 in stock
Description
Electrical Characteristics of 3006P 10K 103 Potentiometer?
- The typical resistance range is between 10 ohms and 2 megohms.
- The resistance tolerance range is 10% standard. Additionally, tighter tolerance is offered.
- The greatest Absolute Minimum Resistance is 2 ohms or about 1 percent, whichever is larger.
- Maximum Contact Resistance Variation is 3 Ohms or 1.0 percent, whichever is larger.
Adjustability of 3006P 10K 103 Potentiometer?
- The voltage range is 0.01 percent.
- Resistance levels are between 0.05 percent
- Infinite Insulation is the solution. Resistance is 1,000 Mohms minimum at 500 VDC.
- At sea level, the dielectric strength is around 900 vac, while at 70,000 feet, it is approximately 350 vac.
Environmental Characteristics of 3006P 10K 103 Potentiometer
- ?At 70 ?C, the power rating (300 volts maximum) is 0.5 watt; at 125 ?C, it is 0 watt.
- A temperature range of -55 ?C to 125 ?C is included.
- 100 ppm/?C is the range of the temperature coefficient.
- Fluor inert seal test at 85 ?C
- According to MIL-STD-202 Method, the humidity is 103.
