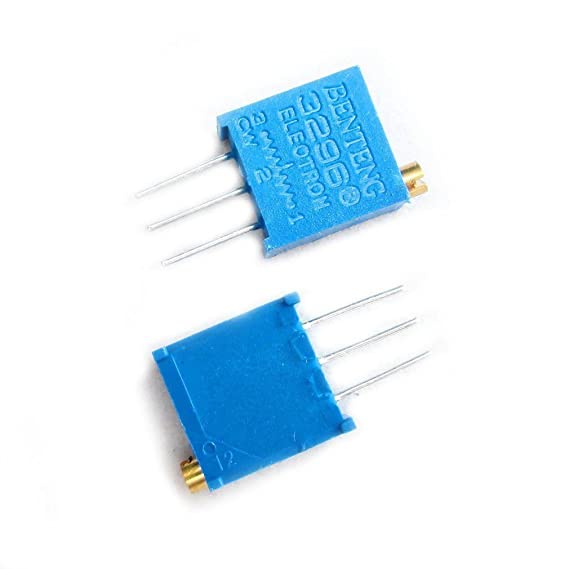

Electrical Characteristics of 3296W 200K 205 Potentiometer?
- The typical resistance range is between 10 ohms and 2 megohms.
- The resistance tolerance range is 10% standard. Additionally, tighter tolerance is offered.
- The greatest Absolute Minimum Resistance is 2 ohms or about 1 percent, whichever is larger.
- Maximum Contact Resistance Variation is 3 Ohms or 1.0 percent, whichever is larger.
Adjustability of? 3296W 200K 205 Potentiometer?
- The voltage range is 0.01 percent.
- Resistance levels are between 0.05 percent
- Infinite Insulation is the solution. Resistance is 1,000 Mohms minimum at 500 VDC.
- At sea level, the dielectric strength is around 900 vac, while at 70,000 feet, it is approximately 350 vac.
Environmental Characteristics 3296W 200K 205 Potentiometer?
- At 70 ?C, the power rating (300 volts maximum) is 0.5 watt; at 125 ?C, it is 0 watt.
- A temperature range of -55 ?C to 125 ?C is included.
- 100 ppm/?C is the range of the temperature coefficient.
- Fluor inert seal test at 85 ?C
- According to MIL-STD-202 Method, the humidity is 103.
