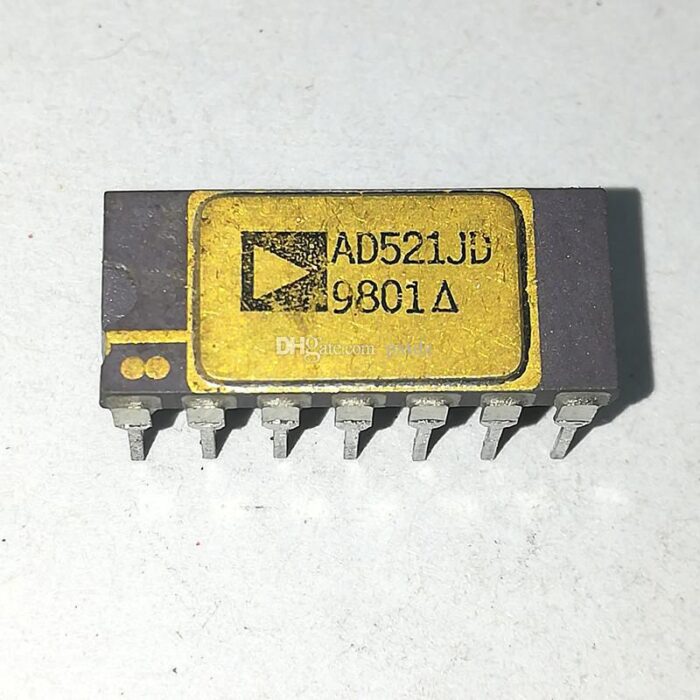

AD521JD ANALOG DEVICE
₹6,615.00
As a complete instrumentation amplifier, the AD521 requires
only two resistors to set its gain to any value between 0.1 and
1000. The ratio matching of these resistors does not affect the
high CMRR (up to 120dB) or the high input impedance (3 X
109il) of the AD521. Furthermore, unlike most operational
amplifier-based instrumentation amplifiers, the inputs are
protected against over voltage sup to :1:15volts beyond the
supplies.
The AD521 IC instrumentation amplifier is available in four
different versions of accuracy and operating temperature range.
The economical “J” grade, the low drift “K” grade, and the
lower drift, higher linearity “L” grad
16 in stock (can be backordered)
