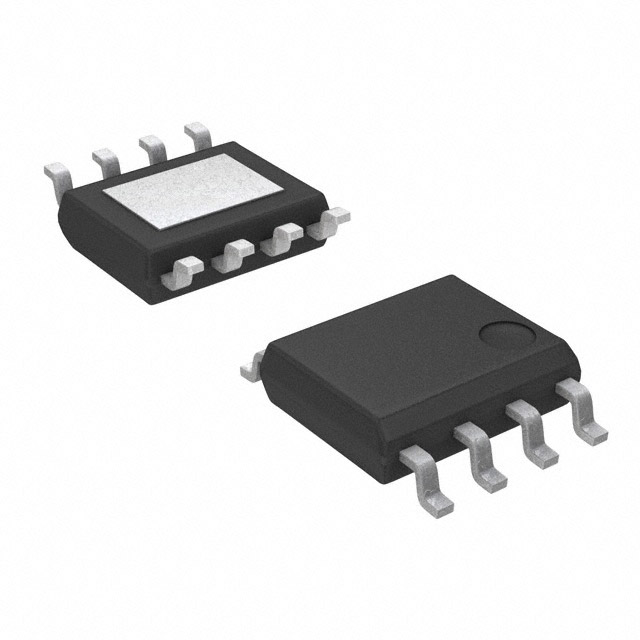

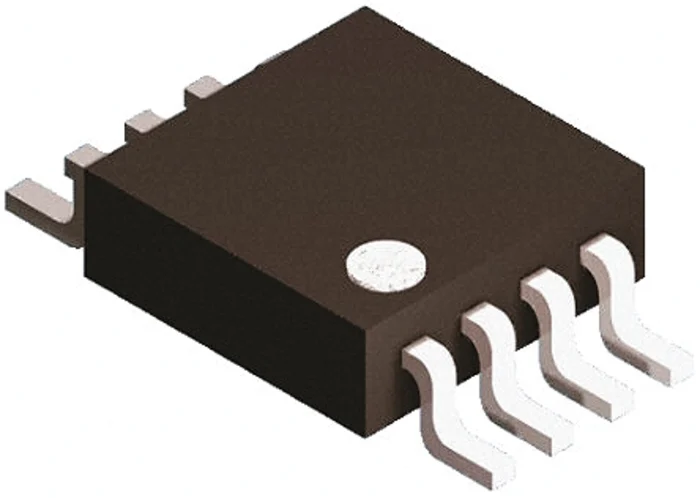

AP7165-SPG-13

₹38.00

Features of AP7165-SPG-13

? 2.2V to 5.5V, a broad input voltage range

? 500mA load with a 300mV very low dropout

? Extremely low quiescent current (IQ): typically 125 A

? Total accuracy is less than 2.5% for line, load, and temperature

? 0.8V to 5.0V adjustable output voltage range

? Extremely quick transient reaction

? A high PSRR.

? Reliable voltage control

? Current restriction and short circuit defence

? Thermal shut-off safeguards

? Stable with output capacitors of any kind up to 4.7 F

? A temperature range of -40 to +85 degrees Celsius.

? “Green” molding compound is available in U-DFN3030-10 and SO-8EP (No Br, Sb)

? RoHS Compliant and Lead Free Finish



Application of AP7165-SPG-13

  • Servers and laptops
  • Smart phone and PDA
  • MP3/MP4
  • Bluetooth headset
  • Low and medium power applications
  • FPGA and DSP core or I/O power

1476 in stock

Compare
Add to wishlist
SKU: CMPI-0139 Category:
Description

Description of AP7165-SPG-13

A 600mA, variable output voltage, ultra-low dropout linear regulator is the AP7165. Circuitry for the thermal shutdown, pass element, error amplifier, band-gap reference, and current limit is included in the device.

When the EN pin is set to logic high level, the device is turned on. Power sequence control is possible via a Power-OK (POK) output.It is suitable for low to medium power applications, including as laptop computers, audio and video applications, and battery powered devices, due to its low dropout voltage and low quiescent current characteristics.

About 125 A is the normal quiescent current.Internal current-limit and thermal-shutdown mechanisms guard against IC damage in fault scenarios. The AP7165 is offered in the U-DFN3030-10 and SO-8EP packaging options.
