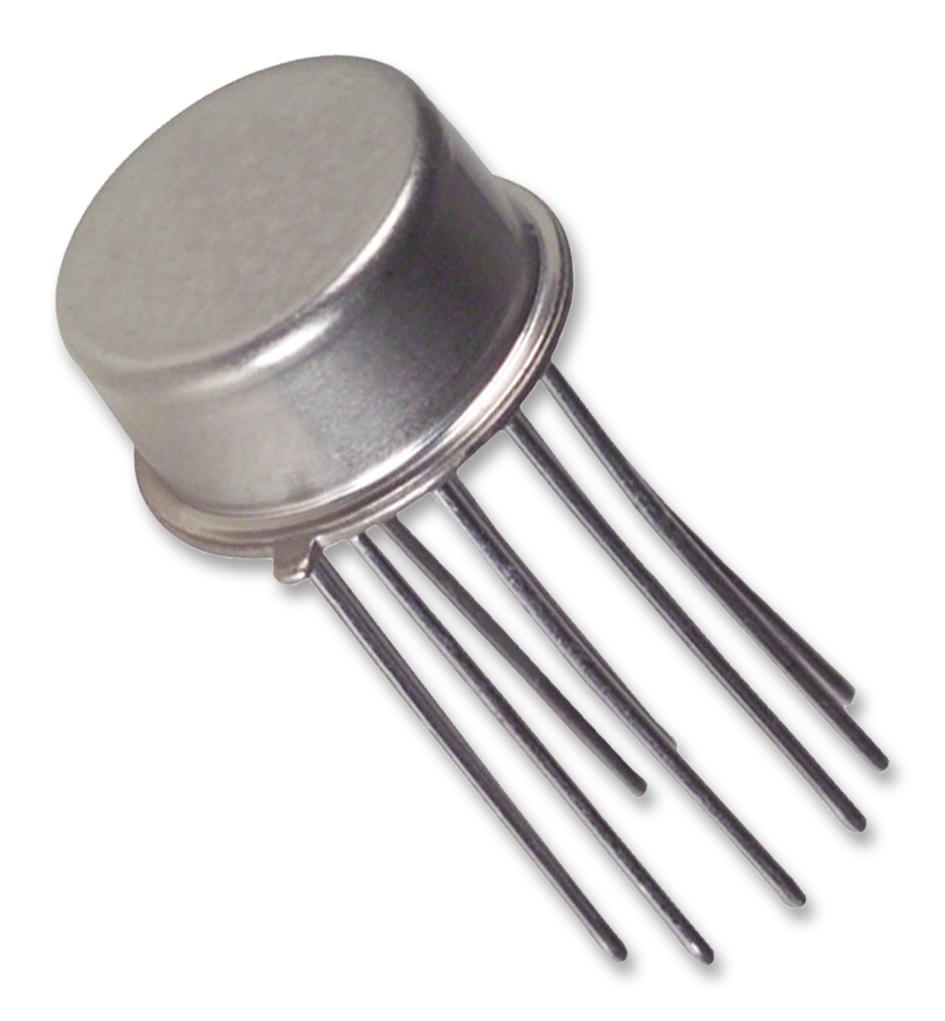

LM101AH

The LM101A series are general purpose operational ? Improved Specifications include:
amplifiers which feature improved performance over
? Offset Voltage 3 mV Maximum Over industry standards like the LM709. Advanced
Temperature (LM101A/LM201A) processing techniques make possible an order of
? Input Current 100 nA Maximum Over magnitude reduction in input currents, and a redesign
Temperature (LM101A/LM201A) of the biasing circuitry reduces the temperature drift
of input current. ? Offset Current 20 nA Maximum Over
Temperature (LM101A/LM201A) This amplifier offers many features which make its
? Specified Drift Characteristics application nearly foolproof: Overload protection on
the input and output, no latch-up when the common
? Offsets Specified Over Entire Common Mode mode range is exceeded, and freedom from and Supply Voltage Ranges oscillations and compensation with a single 30 pF
? Slew Rate of 10V/?s as a Summing Amplifier Capacitor. It has advantages over internally
compensated amplifiers in that the frequency
compensation can be tailored to the particular
application. For example, in low frequency circuits it
can be overcompensated for increased stability
margin or the compensation can be optimized to give
more than a factor of ten improvement in high
frequency performance for most applications
