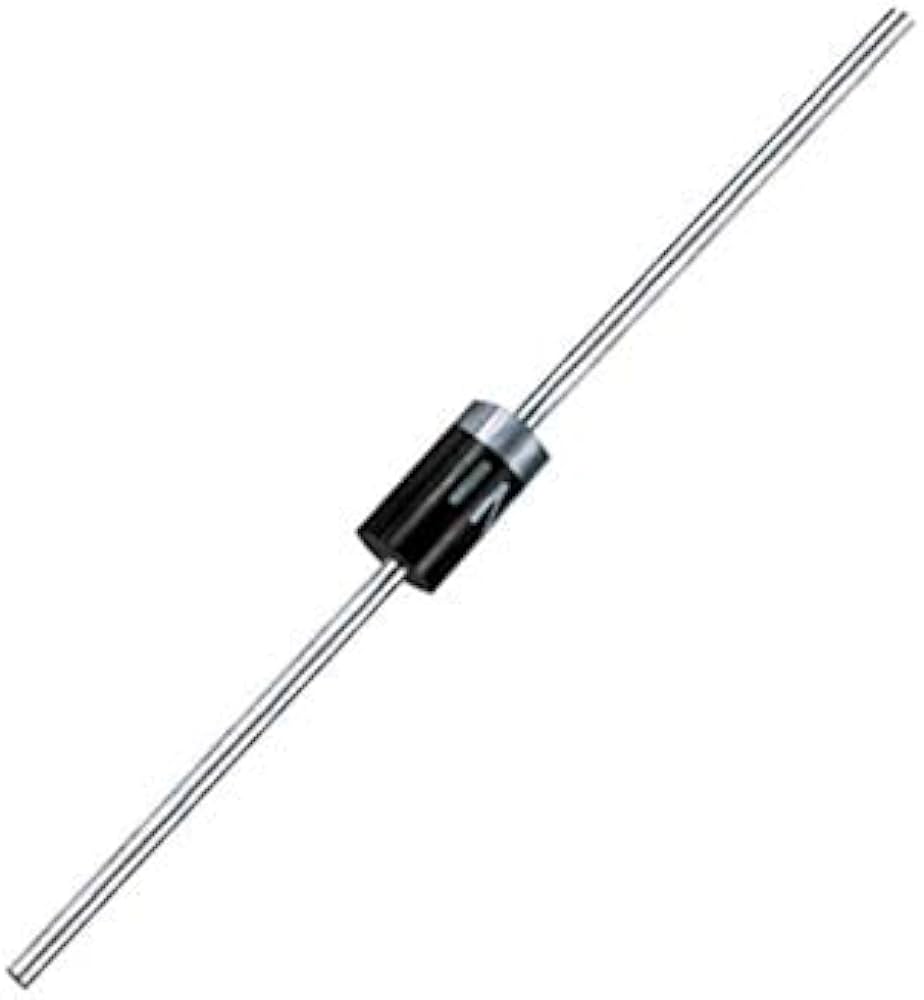

ā¢ 600W peak pulse capability at 10/1000Ī¼s waveform, with a duty cycle of 0.01%; glass passivated chip junction in DO-15 Package; fast response time typically less than 1.0ps from 0 Volts to BV min; excellent clamping capability; typical failure mode is short from over-specified voltage or current; whisker test conducted based on Table 4a and 4c of JEDEC JESD201A
Description
Reviews (0)
Be the first to review “P6KE8.2A (PACK OF 10)” Cancel reply
