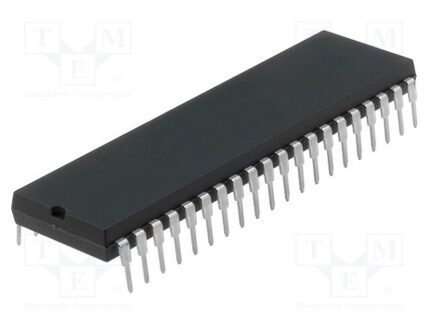

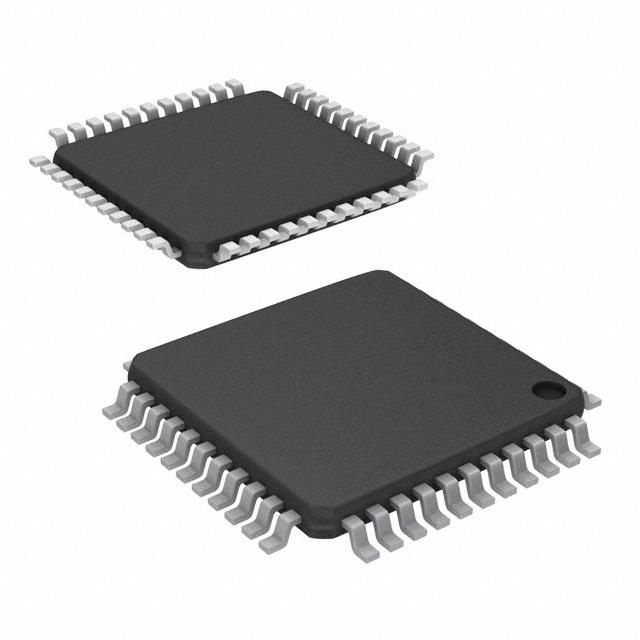

PIC16F874A Microcontroller
₹152.00
The PIC16F874A?is a 28/40/44-Pin Enhanced Flash Microcontrollers. The following are the features:-
? Timer0: 8-bit timer/counter with 8-bit prescaler
? Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock
? Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
? Two Capture, Compare, PWM modules
– Capture is 16-bit, max. resolution is 12.5 ns
– Compare is 16-bit, max. resolution is 200 ns
– PWM max. resolution is 10-bit
? Synchronous Serial Port (SSP) with SPI (Master mode) and I2C? (Master/Slave)
Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection
? Parallel Slave Port (PSP) ? 8 bits wide with external RD, WR and CS controls (40/44-pin only)
? Brown-out detection circuitry for Brown-out Reset (BOR)
1000 in stock (can be backordered)
