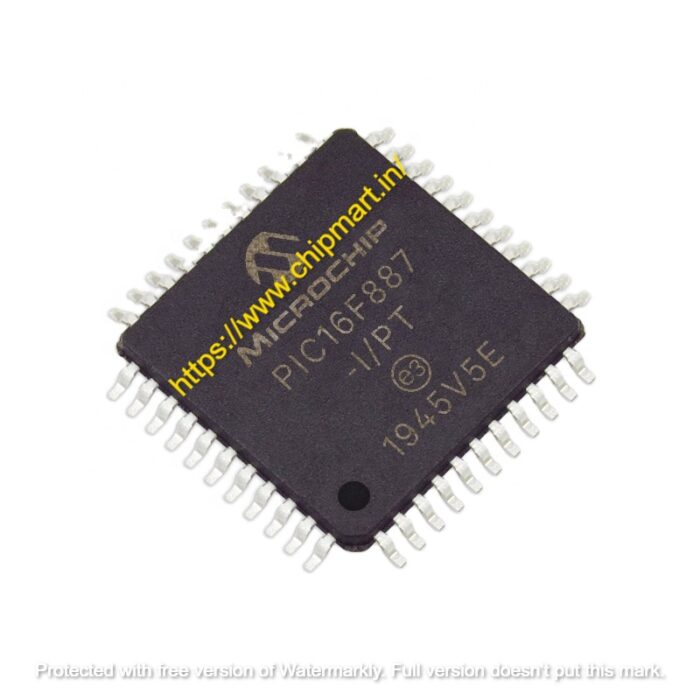

PIC16F887-I/PT
₹450.00
The PIC16F882/883/884/886/887 devices include a 13-bit program counter that can address memory regions for program that are 2K x 14 (0000h-07FFh) for the PIC16F882, 4K x 14 (0000h-0FFFh) for the PIC16F883/PIC16F884, and 8K x 14 (0000h-1FFFh) for the PIC16F886/PIC16F887. If you reach a location that is larger than these parameters, the original 8K x 14 space will wrap around. The reset vector is at 0000h, whereas the interrupt vector is at 0004h. The PIC16F87X MCUs each include three memory blocks. Program memory and data memory are connected by separate buses to enable concurrent access. The PIC16F87X MCUs each include three memory blocks. Program memory and data memory are connected by separate buses to enable concurrent access.
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
PIC12F675 Microcontroller
The PIC12F675 has a 13-bit program counter capable of addressing an 8K x 14 program memory space. The data memory is partitioned into two banks, which contain the General Purpose Registers and the Special Function Registers. The register file is organized as 64 x 8 in the PIC12F675 device. Each register is accessed, either directly or indirectly, through the File Select Register FSR. There are as many as six general purpose I/O pins available. Depending on which peripherals are enabled, some or all of the pins may not be available as general purpose I/O. In general, when a peripheral is enabled, the associated pin may not be used as a general purpose I/O pin.
PIC16C622 Microcontroller
The PIC16C622 device has enhanced core features, eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available. Additionally, a large register set gives some of the architectural innovations used to achieve a very high performance. PIC16C622 micro controllers typically achieve a 2:1 code compression and a 4:1 speed improvement over other 8-bit micro controllers in their class.

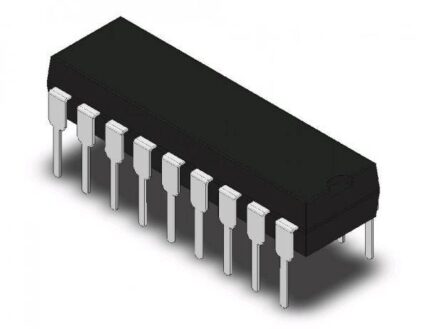

PIC16C733 Microcontroller
The PIC6C733 is a 8 Bit CMOS Microcontroller with A/D Converter and LIN-BUS Transceiver. The following are the features:-
??Four channel a-bit A/D converter
? 8-bit real clock/counter (TMRO) With 8-bit programmable prescaler
? Integrated LIN-BUS Transceiver
? Wake-up on Bus activity
? 12-V Battery operation for Transceiver
PIC16F628A Microcontroller
The PIC16F628A is 18-pin Flash-based members of the versatile PIC16F628A family of low-cost, high-performance, CMOS, fullystatic, 8-bit microcontrollers. All PIC? microcontrollers employ an advanced RISC architecture. The PIC16F628A have enhanced core features, an eight-level deep stack, and multiple internal and external interrupt sources. The separate instruction and data buses of the Harvard architecture allow a 14-bit wide instruction word with the separate 8-bit wide data. The two-stage instruction pipeline allows all instructions to execute in a single cycle, except for program branches (which require two cycles). A total of 35 instructions (reduced instruction set) are available, complemented by a large register set.

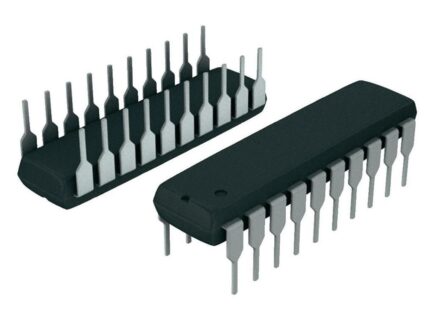

PIC16F677 Microcontroller
The PIC16F677 is a 20-Pin Flash-Based, 8-Bit CMOS Microcontrollers. The following are the features:-
??17 1/0 Pins and I Input-only Pin:
- High current source/sink for direct LED drive
- ?Interrupt-on-Change pin
- ?Individually programmable weak pull-ups
- Ultra Low-power Wake-up (LJLPWU)
? Analog Comparator Module With:
- TWO analog comparators
- Programmable on-chip voltage reference (CVREF) module (% of Voo)
- Comparator inputs and outputs externally accessible
- SR Latch mode
- Timer I Gate Sync Latch
-?Fixed O.6VVREF
? AID Converter:??ID-bit resolution and 12 channels
? Timer 8-Bit Timer/Counter With 8-Bit rammable Prescaler
PIC16F716 Microcontroller
The PIC16F690 is a 8-bit Flash-based Microcontroller with A/D Controller and Enhanced Capture/Compare PWM . The following are the features:-
? Timer0: 8-bit timer/counter with 8-bit prescaler
? Timer1: 16-bit timer/counter with prescaler can be incremented during Sleep via external crystal/clock
? Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
? Enhanced Capture, Compare, PWM module:
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM maximum resolution is 10-bit
- Enhanced PWM:
- Single, Half-Bridge and Full-Bridge modes
- Digitally programmable dead-band delay
- Auto-shutdown/restart
? 8-bit multi-channel Analog-to-Digital Converter
? 13 I/O pins with individual direction control
? Programmable weak pull-ups on PORTB
PIC16F73 Microcontroller
The PIC16F73 is a 28/40-Pin 8-Bit CMOS FLASH Microcontrollers . The following are the features:-
? Timer0: 8-bit timer/counter with 8-bit prescaler
? Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
? Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
? Capture, Compare, PWM (CCP) module
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
PIC16F77 Microcontroller
The PIC16F77 is a 28/40-Pin 8-Bit CMOS FLASH Microcontrollers. The following are the features:-
? Timer0: 8-bit timer/counter with 8-bit prescaler
? Timer1: 16-bit timer/counter with prescaler, can be incremented during SLEEP via external crystal/clock
? Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
? Capture, Compare, PWM (CCP) module
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
? 8-bit, 5-channel analog-to-digital converter
