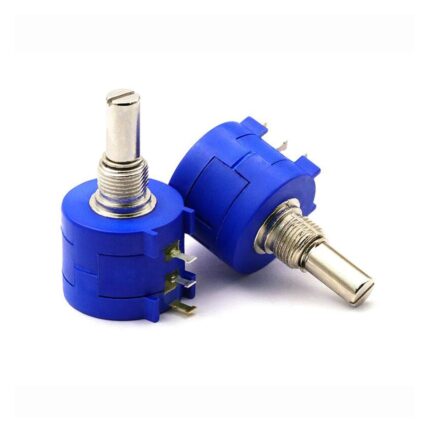

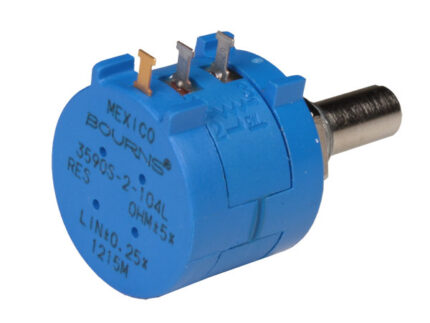

Potentiometer 2k 3590S 202
₹225.00
Part Number – 2k 3590S 202
Manufacturer – Bourns Inc.
Manufacturer Product Number – 3590S-1-102
Description – POT 2K OHM 2W WIREWOUND LINEAR
Detailed Description – 2k Ohm 1 Gang Linear Panel Mount Potentiometer None 10.0 Kierros Wirewound 2W Solder Lug
401 in stock
Features of Bourns 2K Potentiometer – 3590 Series (10 Turns)
- Bushing mount
- Optional AR pin feature
- Plastic or metal shaft and bushings
- Wirewound
- Solder lugs or PC pins
- Sealable (Full body seal)
- Designed for use in HMI applications
Characteristics of 2K 3590s 202
- Resistance (Ohms) – 2k
- Tolerance – ±5%
- Power (Watts)- 2W
- Built in Switch- None
- Number of Turns -10
- Taper- Linear
- Number of Gangs- 1
- Adjustment Type- User Defined
- Temperature Coefficient- ±50ppm/°C
- Rotation – 3600°
- Resistive Material- Wirewound
- Termination Style- Solder Lug
- Actuator Type- Slotted
- Actuator Length- 0.812″ (20.63mm)
- Actuator Diameter- 0.248″ (6.30mm)
- Bushing Thread- 3/8-32
- Mounting Type – Panel Mount
- Size – Body
- Round – 0.875″ Dia (22.23mm)
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

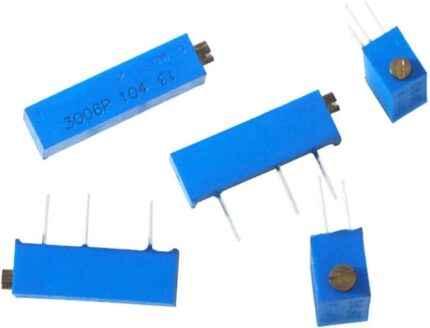

Bourns 3006P 1M 105 Ohms Trimpot Trimmer Potentiometer (Pack of 5)
- 5 terminal styles in multiturn or cermet or??industrial or??sealed
- Packaging in tape and reel is available.
- Chevron seal design
- Styles RJ24 per MIL-R-22097 and RJR24 per High-Rel Mil-R-39035 are listed on the QPL.
- The available mounting hardware is of H-117P
- Available in a RoHS-compliant* variant.

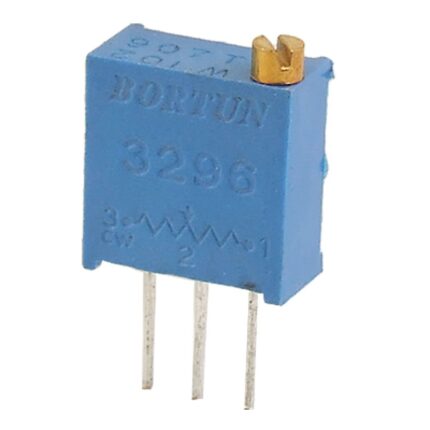

Bourns 3296W 20K 202 Ohms Trimpot Trimmer Potentiometer (Pack of 5)
