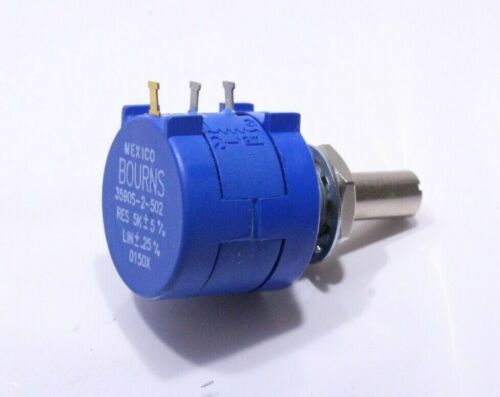

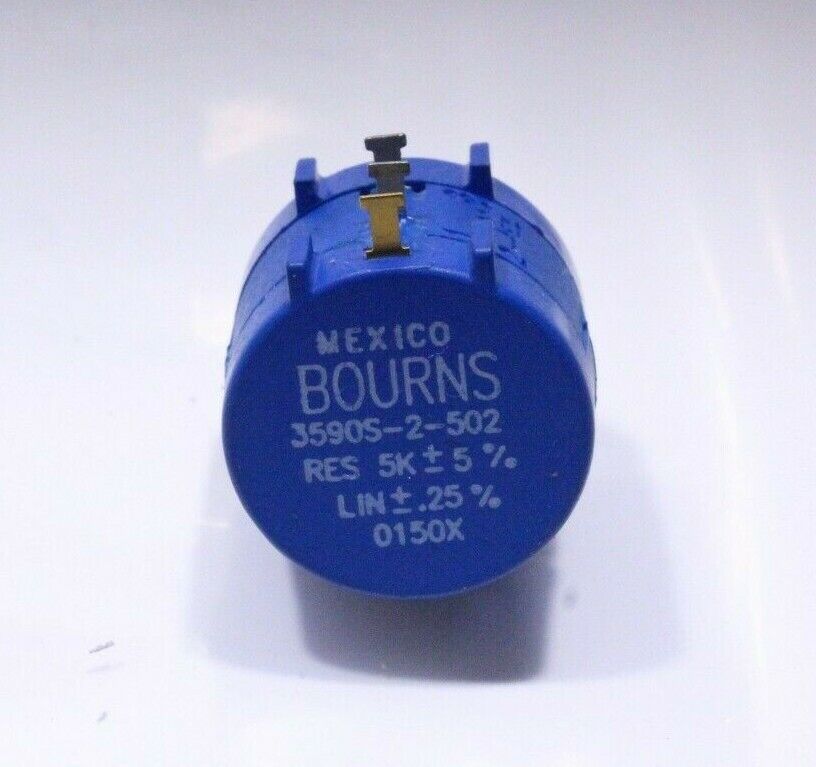

Features of Bourns 5K Potentiometer – 3590 Series (10 Turns)
- Bushing mount
- Optional AR pin feature
- Plastic or metal shaft and bushings
- Wirewound
- Solder lugs or PC pins
- Sealable (Full body seal)
- Designed for use in HMI applications
Characteristics of 5K 3590s 502
- Resistance (Ohms) – 5k
- Tolerance – ?5%
- Power (Watts)- 2W
- Built in Switch- None
- Number of Turns -10
- Taper- Linear
- Number of Gangs- 1
- Adjustment Type- User Defined
- Temperature Coefficient- ?50ppm/?C
- Rotation – 3600?
- Resistive Material- Wirewound
- Termination Style- Solder Lug
- Actuator Type- Slotted
- Actuator Length- 0.812″ (20.63mm)
- Actuator Diameter- 0.248″ (6.30mm)
- Bushing Thread- 3/8-32
- Mounting Type – Panel Mount
- Size – Body
- Round – 0.875″ Dia (22.23mm)
