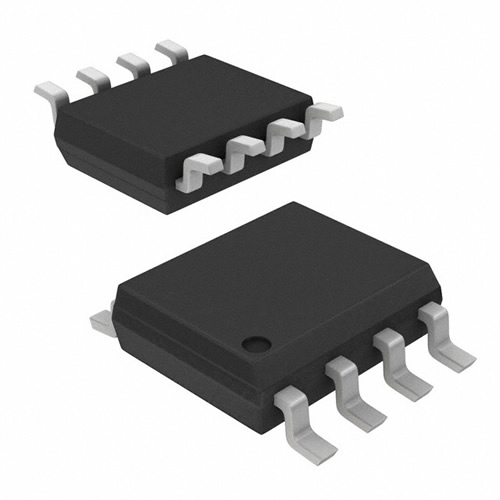

REF191GS

The REF19x series precision band gap voltage references use a
patented temperature drift curvature correction circuit and
laser trimming of highly stable, thin-film resistors to achieve a
very low temperature coefficient and high initial accuracy.
The REF19x series is made up of micropower, low dropout
voltage (LDV) devices, providing stable output voltage from
supplies as low as 100 mV above the output voltage and
consuming less than 45 ?A of supply current. In sleep mode,
which is enabled by applying a low TTL or CMOS level to the
SLEEP pin, the output is turned off and supply current is
further reduced to less than 15 ?A.
The REF19x series references are specified over the extended
industrial temperature range (?40?C to 85?C) with typical
performance specifications over ?40?C to 125?C for
applications, such as automotive.

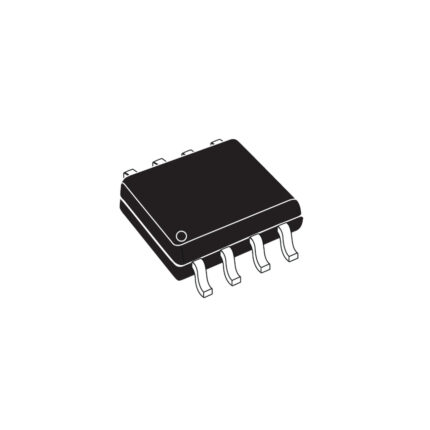

All electrical grades are available in an 8-lead SOIC package; the
PDIP and TSSOP packages are available only in the lowest
electrical grade.
